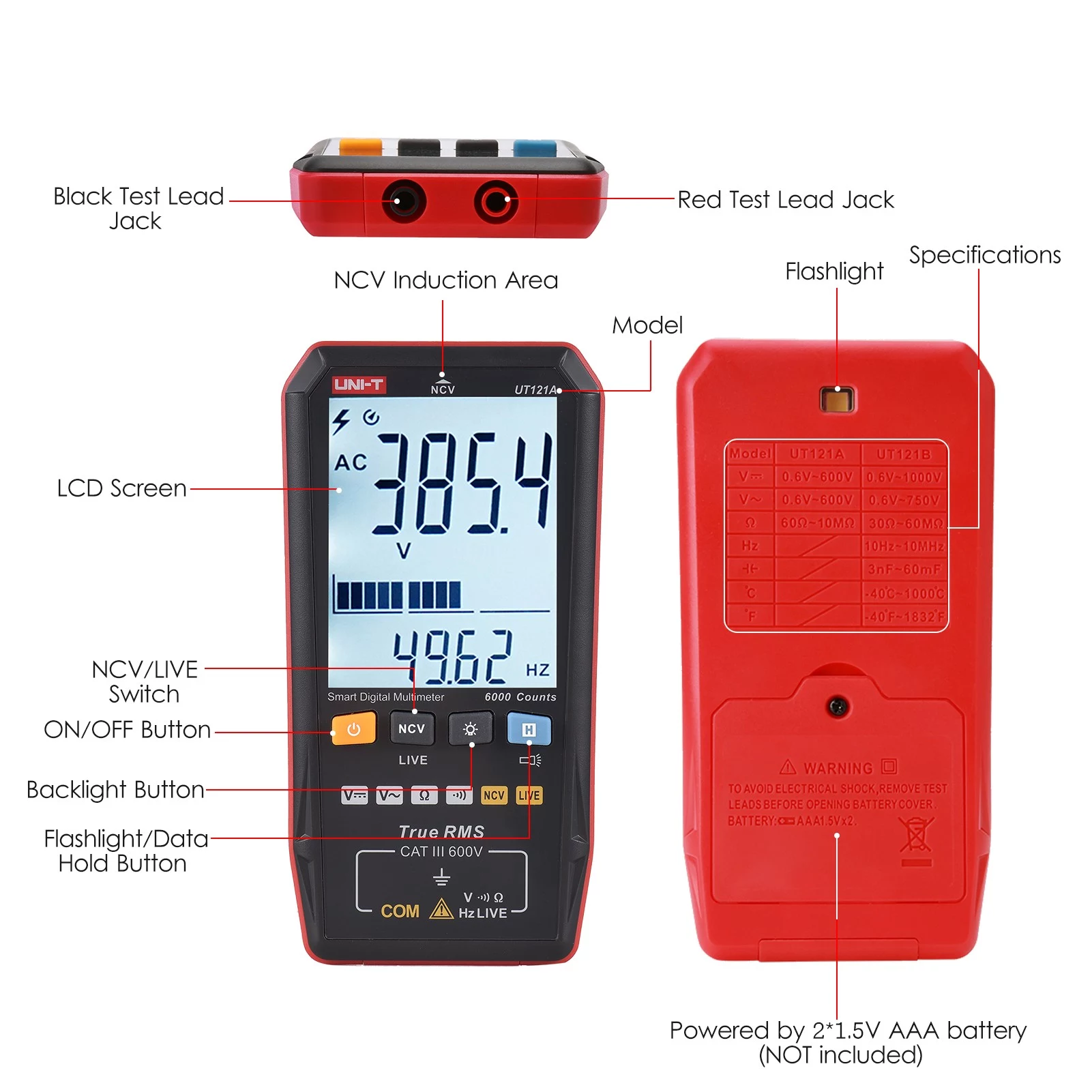

Smart Digital Multimeter UNI-T UT121A AC-DC Voltage True RMS Frekuens adalah multimeter digital pintar yang dirancang untuk mengukur berbagai parameter listrik dengan akurasi tinggi. Dikenal dengan fitur True RMS, alat ini cocok untuk penggunaan dalam pengukuran tegangan AC dan DC, serta parameter lainnya seperti frekuensi dan resistansi.
Smart Digital Multimeter UNI-T UT121A AC-DC Voltage True RMS Frekuens adalah multimeter digital yang ideal untuk teknisi, insinyur, dan pengguna lainnya yang membutuhkan alat pengukur yang akurat dan serbaguna. Dengan fitur-fitur canggih seperti pengukuran True RMS dan frekuensi, serta desain yang user-friendly, UT121A menawarkan solusi pengukuran yang efektif dan efisien untuk berbagai aplikasi listrik.
FITUR UNI-T UT121A
- True RMS
- AC/DC 600V voltage measurement (UT121A)
- AC 750V/DC 1000V voltage measurement (UT121B)
- 60M large resistance measurement (UT121B)
- 60mF large capacitance measurement (UT121B)
- AC/DC 600V voltage measurement (UT122)
- 60M large resistance measurement (UT122)
- 99mF large capacitance measurement (UT122)
- Built-in rechargeable lithium battery, Type-C charging (UT122)
- Temperature measurement (UT122)
- Full-scale input protection
- NCV/LIVE measurement
- Large size LCD screen
- 19mm ultra-thin body
- 6000counts
- Intelligent identification gear
- Parameters
SPESIFIKASI UNI-T UT121A
| Specifications |
Range |
UT121A |
UT121B |
UT122 |
| AC voltage (V) |
6.000V/60.00V/600.0V |
±(1.0%+3) |
|
±(1.0%+3) |
| 6.000V/60.00V/600.0V/750.0V |
|
±(1.5%+3) |
|
| AC voltage frequency (Hz) |
10Hz-1kHz |
±(0.5%+2) |
±(0.5%+2) |
±(0.5%+2) |
| DC voltage (V) |
6.000V/60.00V/600.0V |
±(0.7%+3) |
|
±(0.5%+3) |
| 6.000V/60.00V/600.0V/1000.0V |
|
±(1.2%+3) |
|
| Resistance (Ω) |
6000Ω/60.00KΩ/600.0KΩ/6.000MΩ/10.00MΩ |
±(2.0%+5) |
|
|
| 600.0Ω/6.000KΩ/60.00KΩ/600.0KΩ/60.00MΩ |
|
±(2%+5) |
|
| 600.0Ω/6.000KΩ/60.00KΩ/600.0KΩ/6.000MΩ/60.00MΩ |
|
|
±(2.0%+5) |
| Capacitance (F) |
60.00nF/600.0nF～600.0μF/6000uF～60.0mF |
|
±(10%+5) |
|
| 99.99nF/999.9nF～9.999μF/9.999mF～99.99mF |
|
|
10% |
| Frequency (Hz) |
10.00Hz-10.00MHz |
|
±(0.1%+3) |
±(0.1%+3) |
| Temperature(℃/℉) |
–40℃～1000℃/–40°F～1832°F |
|
±3℃/±6℉ |
±3℃/±6℉ |
| Features |
| Display count |
|
6099 |
6099 |
6199 |
| Dual display |
|
√ |
√ |
√ |
| Auto range |
|
√ |
√ |
√ |
| NCV detection |
|
√ |
√ |
√ |
| LIVE detection |
|
√ |
√ |
√ |
| Diode test |
|
/ |
√ |
√ |
| Continuity buzzer |
|
√ |
√ |
√ |
| LCD high voltage alert |
|
√ |
√ |
√ |
| Flashlight |
|
√ |
√ |
√ |
| Low battery indication |
|
√ |
√ |
√ |
| Auto power off |
|
√ |
√ |
√ |
| Data hold |
|
√ |
√ |
√ |
| Category ratings |
|
CATⅢ 600V |
CATⅢ 600V |
CATⅢ 600V |
| General Characteristics |
| Standard accessories |
UT121A: Batteries, test leads, English manual; UT121B/UT122: Batteries, test leads, temperature probe, English manual |
| Power |
2*1.5V AAA |
| Display |
UT121A/UT122B: 52*66mm; UT122: 65*55mm |
| Product size |
UT121A/UT122B: 143*74*17mm; UT122: 144*71*15.5mm |
| Product net weight |
UT121A/UT122B: 142g; UT122: 157g |
| Standard individual packing |
Gift box, carrying bag |
