| Image Quality |
| IFOV (spatial resolution) | 0.6 mRad |
| Image resolution (pixel) | 1024 x 768 (786,432 pixels) |
| 2048 x 1536 (3,145,728 pixels) (SuperResolution mode) |
| Frame rate (@ max. image resolution) | 30 and 9 Hz |
| SuperResolution & Dynamic SuperResolutin (resolution enhancement) | Yes, MicroScan technology quadruples IR measurement pixels |
| Subwindowing modes available – subwindowing options are not available on 9 Hz models: (add on at time of order) | Option 1: 640 x 480 (60 fps)
Option 2: 384 x 288 (120 fps)
Option 3: 1024 x 96 (240 fps) |
| Field of View (FOV) w/standard 30mm lens | 32.4° x 24.7° |
| Thermal sensitivity (NETD) | ≤ 0.05 °C at 30 °C target temp (50 mK) |
| Spectral range | 7.5 µm to 14 µm |
| Wireless Connectivity |
| Fluke Connect® compatible | No |
| IR-Fusion® Technology |
| AutoBlend™ mode | Yes |
| Viewing modes | Picture-in-picture, continuous blending, color alarms (above and below user defined temperatures) |
| Focus System |
| LaserSharp® Auto Focus | Yes |
| Auto focus | Yes |
| Manual focus | Yes, with the touch of a finger for tighter views |
| EverSharp multifocal recording | Yes, Multifocal recording captures images from different focal distances and combines them into one image displaying each object sharply for the best image quality |
| Temperature Measurement |
| Range | -40 °C to +1200 °C (-40 °F to 2192 °F), High temperature option – request at time of order: up to 2000 °C (3632 °F) |
| Accuracy | ± 1.5 °C or ± 1.5 % |
| Correction functions | LDC™ – Laser rangefinder based distance correction, emissivity (manual or material table) |
| Transmissivity, ambient temperature, humidity (option) |
| Data Storage and Image Capture |
| Image/video storage | SDHC memory card |
| Interfaces for image/data transfer | Supported in camera data ports: Image transfer: SD card, USB 2.0, video output DVI-D (HDMI). GigE vision and RS232 available in 2015 |
| SmartView® software: SD card. USB 2.0, GigE Vision and RS232 available in 2015 |
| General Specifications |
| Laser pointer | Yes, laser class: 2 |
| Laser distance meter | Accuracy: ± 1.5 mm
Range: 70 m (230 ft)
Wavelength: 635 nm (red)
Laser class: 2 |
| Display | Extra-large 5.6″ color TFT display, 1280 × 800 pixel resolution, Suitable for daylight operation |
| Geo-localization | Built-in GPS for geo-referencing |
| Digital visible light camera | Up to 8 megapixel resolution for image and video recording |
| Digital zoom | Up to 32x digital zoom |
| Text annotation | Yes |
| Voice annotation | Yes |
| Audio | Integrated microphone and loudspeaker for voice annotations |
| A/D conversion | 16 bit |
| Power supply | External: 12 VDC … 24 VDC
Battery: Standard Li-Ion video camera battery |
| Replaceable Smart Batteries with LED level indicator | Two |
| Operating temperature | -25 °C to +55 °C (-13 °F to 131 °F) |
| Storing temperature | -40 °C to +70 °C (-40 °F to 158 °F) |
| Humidity | Relative humidity 10 % to 95 %, non-condensing |
| Shock | Operational: 25G, IEC 68-2-29 |
| Vibration | Operational: 2G, IEC 68-2-6 |
| Protection class | IP54 |

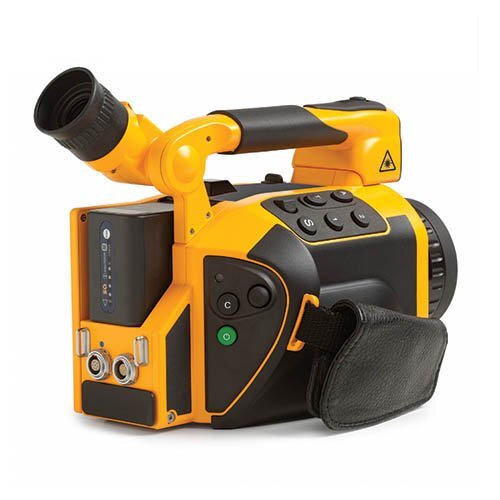

| Ergonomics | Camcorder w/ handle |
| Viewfinder | Tiltable LCoS color viewfinder display, 800 × 600 pixel resolution |
| Dimensions (with standard 1.0/30 mm lens) | 210 × 125 × 155 mm (8.25 x 4.9 x 6.1 in) |
| Weight (with standard 1.0/30 mm lens) | 1.95 kg (4.3 lb) |
| Measurement functions (selection) | Multiple measurement spots & Regions of Interest (ROIs), hot/cold spot detection, isotherms, profiles, differences |
| Automatic functions (selection) | Focus, image, level, range, NUC, lens recognition, image optimization, alarm sequence |
| SmartView® software | Yes |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hugarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese and Turkish. |
| Warranty | 2 years |
