For all specifications: accuracy is specified for one year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 90 %. Accuracy specifications take the form of ± ([ % of Reading ] + [ Number of least significant digits ]).
| Detailed Specifications |
| AC Voltage |
| Range ¹ / Resolution |
600.0 mV / 0.1 mV
6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V
1000 V / 1 V |
| Accuracy ², ³ |
45 Hz to 500 Hz |
1.0 % + 3 |
| 500 Hz to 1 kHz |
2.0 % + 3 |
|
¹ All AC voltage ranges are specified from 1 % of range to 100 % of range.
² Crest factor of ≤ 3 at full scale p to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V.
³ For non-sinusoidal waveforms, add –(2 % of reading + 2 % full scale) typical, for crest factor up to 3. |
| DC Voltage, Continuity, Resistance, Diode Test and Capacitance |
| Function |
| mV |
Range ¹ / Resolution |
600.0 mV / 0.1 mV |
| Accuracy |
0.09 % + 2 |
| V |
Range ¹ / Resolution |
6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V
1000 V / 1 V |
| Accuracy |
0.09 % + 2
0.15 % + 2 |
| ))) |
Range ¹ / Resolution |
600 Ω / 1 Ω |
| Accuracy |
Meter beeps at < 25 Ω, beeper detects opens or shorts of 250 μs or longer. |
| Ω |
Range ¹ / Resolution |
600.0 Ω / 0.1 Ω
6.000 kΩ / 0.001 kΩ
60.00 kΩ / 0.01 kΩ
60.00 kΩ / 0.1 kΩ
600.0 kΩ / 0.001 MΩ
50.00 MΩ / 0.01 MΩ |
| Accuracy |
0.5 % + 2
0.5 % + 1
1.5 % + 3 |
| Diode test |
Range ¹ / Resolution |
2.000 V0.001 V |
| Accuracy |
1 % + 2 |
| μF |
Range ¹ / Resolution |
1000 nF / 1 nF
10.00 μF / 0.01 μF
100.0 μF / 0.1 μF
9999 μF ¹ / 1 μF |
| Accuracy |
1.2 % + 2
10 % |
| ¹ In the 9999 μF range for measurements to 1000 μF, the measurement accuracy is 1.2 % + 2. |
| AC and DC Current |
| Function |
mA AC
(45 Hz to 1 kHz) |
Range ¹ / Resolution |
60.00 mA / 0.01 mA
400.0 mA ³ / 0.1 mA |
| Accuracy |
1.5 % + 3 |
| mA DC ² |
Range ¹ / Resolution |
60.00 mA / 0.01 mA
400.0 mA / 0.1 mA |
| Accuracy |
0.5 % + 3 |
|
¹ All AC current ranges are specified from 5 % of range to 100 % of range.
² Input burden voltage (typical): 400 mA input 2 mV/mA.
³ 400.0 mA accuracy specified up to 600 mA overload. |
| Frequency |
|
Range ¹ / Resolution |
99.99 Hz / 0.01 Hz
999.9 Hz / 0.1 Hz
9.999 kHz / 0.001 kHz
99.99 kHz / 0.01 kHz |
| Accuracy |
0.1 % + 1 |
|
¹ Frequency is specified up to 99.99 kHz in volts and up to 10 kHz in amps. |
| Input Characteristics |
| Function |
|
|
 |
OverloadProtection |
1100 V RMS |
Input Impedance
(nominal) |
> 10 MΩ < 100 pF |
Common Mode Rejection Ratio
(1 kΩ unbalance) |
> 120 dB at DC, 50 Hz or 60 Hz |
| Normal Mode Rejection |
> 60 dB at 50 Hz or 60 Hz |
 |
OverloadProtection |
1100 V RMS |
Input Impedance
(nominal) |
> 10 MΩ < 100 pF |
Common Mode Rejection Ratio
(1 kΩ unbalance) |
> 60 dB, DC to 60 Hz |
 |
OverloadProtection |
1100 V RMS |
Input Impedance
(nominal) |
> 10 MΩ < 100 pF |
Common Mode Rejection Ratio
(1 kΩ unbalance) |
> 120 dB at DC, 50 Hz or 60 Hz |
| Normal Mode Rejection |
> 60 dB at 50 Hz or 60 Hz |
| Open circuit test voltage |
 |
OverloadProtection |
1100 V RMS |
Input Impedance
(nominal) |
< 2.7 V DC |
| Full scale |
To 6 MΩ: < 0.7 V DC
50 MΩ: < 0.9 V DC |
| Typical short circuit current |
< 350 mA |
 |
OverloadProtection |
1100 V RMS |
Input Impedance
(nominal) |
< 2.7 V DC |
| Full scale |
To 6 MΩ: 2.000 V DC |
| Typical short circuit current |
< 1.1 mA |
| mA |
Overload Protection |
Fused, 44/100 A, 1000 V FAST Fuse |
| Overload |
600 mA overload for 2 minutes maximum, 10 minutes rest minimum |
| MIN/MAX Recording |
| DC functions |
The specified accuracy of the measurement function ± 12 counts for changes > 350 mS in duration |
| AC functions |
The specified accuracy of the measurement function ± 40 counts for changes > 900 mS in duration |
| General Specifications |
| Maximum voltage between any terminal and earth ground |
1000 V DC or AC RMS |
| Ω fuse protection from A inputs |
0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only |
| Display (LCD) |
Update rate: 4/sec
Volts, amps, ohms: 6000 counts
Frequency: 10,000 counts
Capacitance: 1,000 counts |
| Battery type |
Three AA Alkaline batteries, NEDA 15A IEC LR6 |
| Battery life |
300 hours minimum |
| Temperature |
Operating: -10 °C to 50 °C Storage: -40 °C to 60 °C |
| Relative humidity |
0 % to 90 % (0 °C to 35 °C)
0 % to 75 % (35 °C to 40 °C)
0 % to 45 % (40 °C to 50 °C) |
| Altitude |
Operating: 2,000 m
Storage: 12,000 m |
| Temperature coefficient |
0.1 X (specified accuracy) / °C (< 18 °C or > 28 °C) |
| Wireless frequency |
2.4 GHz ISM Band 20 meter range |
| Size (H x W x L) |
4.75 cm x 9.3 cm x 20.7 cm (1.87 in x 3.68 in x 8.14 in) |
| Weight |
340 g (12 oz) |
| Safety standards |
US ANSI: ANSI/ISA 61010-1 / (82.02.01): 3rd edition
CSA: CAN/CSA-C22.2 No 61010-1-12: 3rd edition
CE European: IEC/EN 61010-1:2010 |
Electromagnetic compatibility
EMI, RFI, EMC, RF |
EN 61326-1:2006, EN 61326-2-2:2006
ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489
V1.8.1:2008, FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249
FCCID : T68-FWCS IC:6627A-FWCS |
| Ingress Protection (IP) rating |
IP54 |
Belanja Multimeter hanya di Alatukur.net dengan kualitas terbaik, harga bersaing, Gratis pengiriman wilayah Jakarta dan sekitarnya. Beli sekarang hanya di toko online terpercaya.

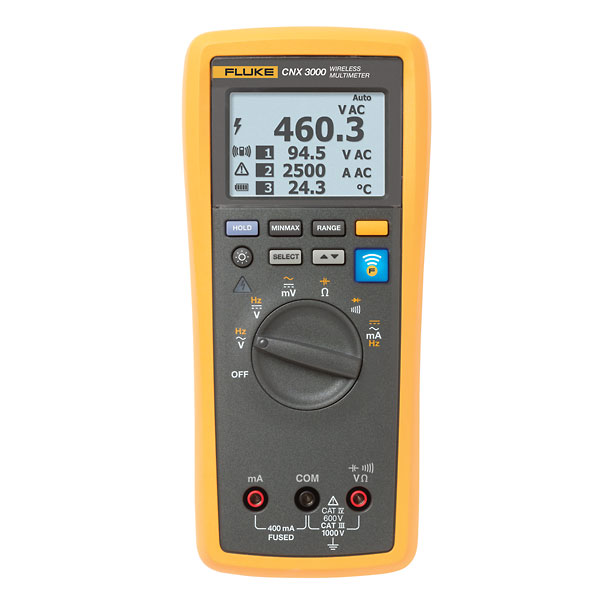

Jual Fluke CNX 3000 Wireless Multimeter dengan harga murah dan garansi resmi dari distributor. Dapatkan produk terbaik dengan spesifikasi lengkap. Produk berkualitas tinggi dengan sertifikat kalibrasi (Certificate of Calibration) dari pabrik dan original/asli. Barang yang kami jual sudah melalui Quality Control (QC) dan siap dikirim.
