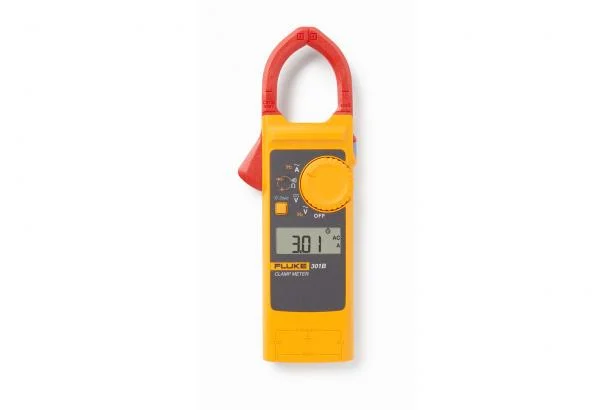

Fluke 301B Clamp Meter memiliki design yang ringan & efisien, yang bisa Anda bawa kemanapun di dalam saku Anda. Design penjepit lebih ramping dan tipis sehingga memudahkan saat melakukan pengukuran pada jaringan kabel yang padat. Fluke 301B dapat Anda gunakan untuk menguji arus, tegangan, resistansi, kontinuitas, frekuensi (tegangan dan arus), kapasitansi, dioda, dll. Dengan Fluke 301B Anda dapat menyelesaikan lebih banyak kebutuhan pengujian dibandingkan dengan produk serupa lainnya.
Specifications
Accuracy is specified for 1 year after calibration, with operating temperatures from 18 °C to 28 °C and relative humidity from 0 % to 75 %. Accuracy specifications take the form of:
±([% of Reading] + [Number of Least Significant Digits]).
| Models | 301A/301A+ | 301B | 301C | |||||
| AC Current (45 to 400 Hz) | Range | 40.00 A | 400.0 A | 60.00 A | 600.0 A | 60.00 A | 600.0 A | 1000 A |
| Resolution | 0.01 A | 0.1 A | 0.01 A | 0.1 A | 0.01 A | 0.1 A | 1 A | |
| Accuracy | 2 % + 10 | 2 % + 5 | 2 % + 10 | 2 % + 5 | 2 % + 10 | 2 % + 5 | 2 % + 5 | |
| AC Voltage (45 to 400 Hz) | Range | 600.0 V | 600.0 V | 600.0 V | ||||
| Resolution | 0.1 V | 0.1 V | 0.1V | |||||
| Accuracy | 1.5% + 5 | 1.5% + 5 | 1.5% + 5 | |||||
| DC Voltage | Range | 600.0 V | 600.0 V | 600.0 V | ||||
| Resolution | 0.1 V | 0.1 V | 0.1 V | |||||
| Accuracy | 1% + 5 | 1% + 5 | 1% + 5 | |||||
| Resistance | Range | 600.0 Ω 6.000 kΩ 60.00 kΩ |
600.0 Ω 6.000 kΩ 60.00 kΩ |
600.0 Ω 6.000 kΩ 60.00 kΩ |
||||
| Accuracy | 1% + 5 | 1% + 5 | 1% + 5 | |||||
| Voltage Frequency | Range | 9.999 Hz 99.99 Hz 999.9 Hz 9.999 kHz 99.99 kHz |
9.999 Hz 99.99 Hz 999.9 Hz 9.999 kHz 99.99 kHz |
9.999 Hz 99.99 Hz 999.9 Hz 9.999 kHz 99.99 kHz |
||||
| Accuracy | 0.1% + 3 | 0.1% + 3 | 0.1% + 3 | |||||
| Current Frequency | Range | 45.0 to 400.0 Hz | 45.0 to 400.0 Hz | 45.0 to 400.0 Hz | ||||
| Accuracy | 0.1% + 3 | 0.1% + 3 | 0.1% + 3 | |||||
| Capacitance | Range | 9.999 uF | 99.99 uF 999.9 uF | 9.999 uF | 99.99 uF 999.9 uF | 9.999 uF | 99.99 uF 999.9 uF | |
| Accuracy | 2 % + 5 | 5% + 5 | 2 % + 5 | 5% + 5 | 2 % + 5 | 5% + 5 | ||
| Diode | Range | 3.000 V | 3.000 V | 3.000 V | ||||
| Accuracy | 10% | 10% | 10% | |||||
| T-rms Value | – | – | ● | |||||
| Continuity | ● | ● | ● | |||||
| Hold | ● | ● | ● | |||||
| Backlight | – | ● | ● | |||||
| Safety rating | CAT III 300V | CAT III 300V | CAT III 300V | |||||
| Weight | 132 g | 132 g | 132 g | |||||
| Size | 190 mm x 52 mm x 16 mm | 190 mm x 52 mm x 16 mm | 190 mm x 52 mm x 16 mm | |||||
| Jaw Opening | 34 mm | 34 mm | 34 mm | |||||
| Clamp Arm Size | 10 mm X 10 mm | 10 mm X 10 mm | 10 mm X 10 mm | |||||
| Battery | (2) AAA Batteries | (2) AAA Batteries | (2) AAA Batteries | |||||
| Warranty | 1 year | 1 year | 1 year | |||||
| General Specifications | |
| Maximum Voltage between any Terminal and Earth Ground | 300 V |
| Maximum Differential Voltage between V/Ω and COM Terminals | 600 V |
| Display (LCD) | 6000 counts, updates 3 times per second |
| Battery Type | 2 AAA, IEC LR03 |
| Battery Life | 500 hours minimum |
| Auto Power Off Time | 20 minutes |
| Temperature | Operating: -10 °C to 50 °C； |
| Storage: -30 °C to 60 °C | |
| Relative Humidity | Operating Humidity: Non condensing (<10°C); ≤ 90 % RH at 10 °C to 30 °C; ≤ 75 % RH at 30 °C to 40 °C; ≤ 45 % RH at 40 °C to 50 °C; |
| Altitude | Operating: 2000 m; Storage: 12000 m |
| Temperature Coefficient | 0.1 x (specified accuracy) /°C (<18 °C or>28 °C) |
| Dimensions (H x W x L) | 190 mm x 52 mm x 16 mm |
| Weight | 132 g |
| Jaw Opening | 34 mm |
| Ingress Protection Rating | IP30 |
| Safety | IEC 61010–1, IEC61010-2-032 CAT III 300 V, Pollution Degree 2 |
| Electromagnetic Environment | IEC 61326–1: Portable |
