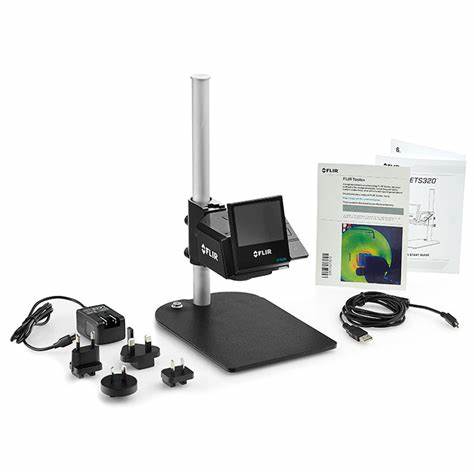

FLIR ETS320 adalah sistem pengukuran termal non-kontak yang memasangkan kamera inframerah sensitivitas tinggi dengan dudukan terintegrasi, untuk pengukuran papan sirkuit tercetak dan perangkat elektronik kecil lainnya secara handsfree.
SPESIFIKASI Flir ETS320
- IR Resolution 320 x 240 (76,800 pixels)
- Spectral Range 7.5 – 13.0 µm
- Detector Type Uncooled microbolometer
- Camera f-number f/1.5
- NETD <60 mK
- Available Lenses NA
- Camera f-number f/1.5
- Close-up Lenses/Microscopes NA
- Detector Type Uncooled microbolometer
- Field of view (FOV) 45° x 34°
- Fixed Focus Distance 70 mm ± 10 mm
- Image Frequency 9 Hz
- IR Resolution 320 x 240 (76,800 pixels)
- NETD <60 mK
- Non-radiometric IR video streaming Uncompressed colorized video using USB
- Radiometric IR video streaming Full dynamic to PC (FLIR Tools/Tools+) using USB
- Spectral Range 7.5 – 13.0 µm
- Spot Size Min. Focus 170 µm
- Accuracy ±3°C or ±3% of reading for ambient temperature 10°C to 35°C (50°F to 95°F)
- Area Box with max/min
- Camera size (L x W x H) 22 x 15 x 30 cm (8.7 x 5.9 x 11.8 in)
- Camera weight incl battery 0.575 kg (1.27 lbs)
- Emissivity Correction Variable from 0.1 to 1.0
- Reflected apparent temperature correction Automatic, based on input of reflected temperature
- Spot Meter Center spot
- Image File Format Standard radiometric JPEG, 14-bit measurement data included
- Interface USB Micro: data transfer to and from PC and Mac devices
- List of Contents Camera, mount, stand, power supply, USB cable, FLIR Tools+ software
- Packaging Size 2.9 kg (6.4 lb.)
- Display 3 in, 320 x 240 pixel color LCD
- Battery operating time Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
- Battery Type Li-ion battery, charged in camera
- Charging Time 2.5 hrs to 90% capacity
- Directives and Regulations Battery Directive 2006/66/EC, EMI/EMC Directive 2014/30/EU, WEEE Directive 2012/19/EC, RoHS2 Directive 2011/65/EC, FCC 47 CFR Part 15 Class B, REACH Regulation EC 1907/2006
- Emissivity Table Table of pre-defined materials
- Encapsulation & Shock & Vibration IP 40 (IEC 60529)
- Operating Temperature Range 10°C to 40°C (50°F to 104°F)
- Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Belanja Thermal Imager hanya di Alatukur.net dengan kualitas terbaik, harga bersaing, Gratis pengiriman wilayah Jakarta dan sekitarnya. Beli sekarang hanya di toko online terpercaya.
Jual FLIR ETS320 dengan harga murah dan garansi resmi dari distributor. Dapatkan produk terbaik dengan spesifikasi lengkap. Produk berkualitas tinggi dengan sertifikat kalibrasi (Certificate of Calibration) dari pabrik dan original/asli. Barang yang kami jual sudah melalui Quality Control (QC) dan siap dikirim.
Pengiriman ke seluruh Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, NTT, NTB, Papua dan Bali Denpasar.
