Rp16.400.000
Be compatible with four standards of ISO, DIN, ANSI and JIS.
Multiple parameter measurement: Ra, Rz, Rq, Rt.
Highly sophisticated inductance sensor.
Four wave filtering methods : RC, PC-RC, GAUSS and D-P.
Small in size, light in weight and easy to use.
Landtek SRT-6200S adalah penguji kekasaran permukaan, juga dikenal sebagai profilometer permukaan atau pengukur kekasaran. Ini adalah perangkat portabel yang digunakan untuk mengukur kekasaran permukaan, membantu menilai teksturnya, kualitas akhir, dan kesesuaian untuk aplikasi tertentu. Harap perhatikan bahwa informasi produk mungkin telah berubah, dan model yang lebih baru mungkin tersedia sejak saat itu, jadi sebaiknya verifikasi spesifikasi dan fitur terbaru dari sumber resmi atau pengecer tepercaya.
Jika Anda tertarik dengan Landtek SRT-6200S Surface Roughness Tester atau produk serupa lainnya, saya sarankan untuk memeriksa informasi terbaru dan spesifikasi produk dari Landtek atau distributor resminya untuk memastikan Anda memiliki detail terbaru sebelum melakukan pembelian.
* Be compatible with four standards of ISO, DIN, ANSI and JIS.
* Multiple parameter measurement: Ra, Rz, Rq, Rt.
* Highly sophisticated inductance sensor.
* Four wave filtering methods : RC, PC-RC, GAUSS and D-P.
* Small in size, light in weight and easy to use.
* Manual or automatic shut down.
* Can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.
* Metric /Imperial Conversion.
When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measurement results on LCD.
| Standards | GB/T6062,ISO4287,DIN4768,JIS B,ANSI46.1 | |
| Parameters | Ra,Rq,Rz,Rt | |
| Measuring Range | Ra:0.05~10.00µm Rz:0.020~100.0µm /1.000~400.0µinch /0.780~4000µinch | |
| Accuracy | <<±10% | |
| Fluctuation of Display Value | <<6% | |
| Resolution | 0.001/0.01/0.1 | |
| Sensor | Radius of Probe Pin | 10µm |
| Material of Probe Pin | Diamond | |
| Measurement Force of Probe | 16mN(1.6gf) | |
| Probe Angle | 90º | |
| Vertical Radius of Guiding Head | 48 mm | |
| Maximum Driving Stroke | 17.5mm/0.7inch | |
| Cutoff length(l) | 0.25mm,0.8mm,2.5mm | |
| Driving Speed | Sampling | When Length=0.25mm,Vt=0.135 mm/s |
| When Length=0.8mm,Vt=0.5mm/s | ||
| When Length=2.5mm,Vt=1mm/s | ||
| Returning | Vt=1mm/s | |
| Profile Digital Filter | RC,PC-RC,GAUSS,D-P | |
| Evaluation Length | 1~5L Optional | |
| Data Memorize | 7 Groups | |
| Operating Conditions | Temp:0~50ºC Humidity:<80%RH | |
| Power Supply | 4×1.5V AAA(UM-4)Battery | |
| Size | Main Unit Size::149x67x29mm Measuring Base Size:185x56x47mm | |
| Weight | 485g | |

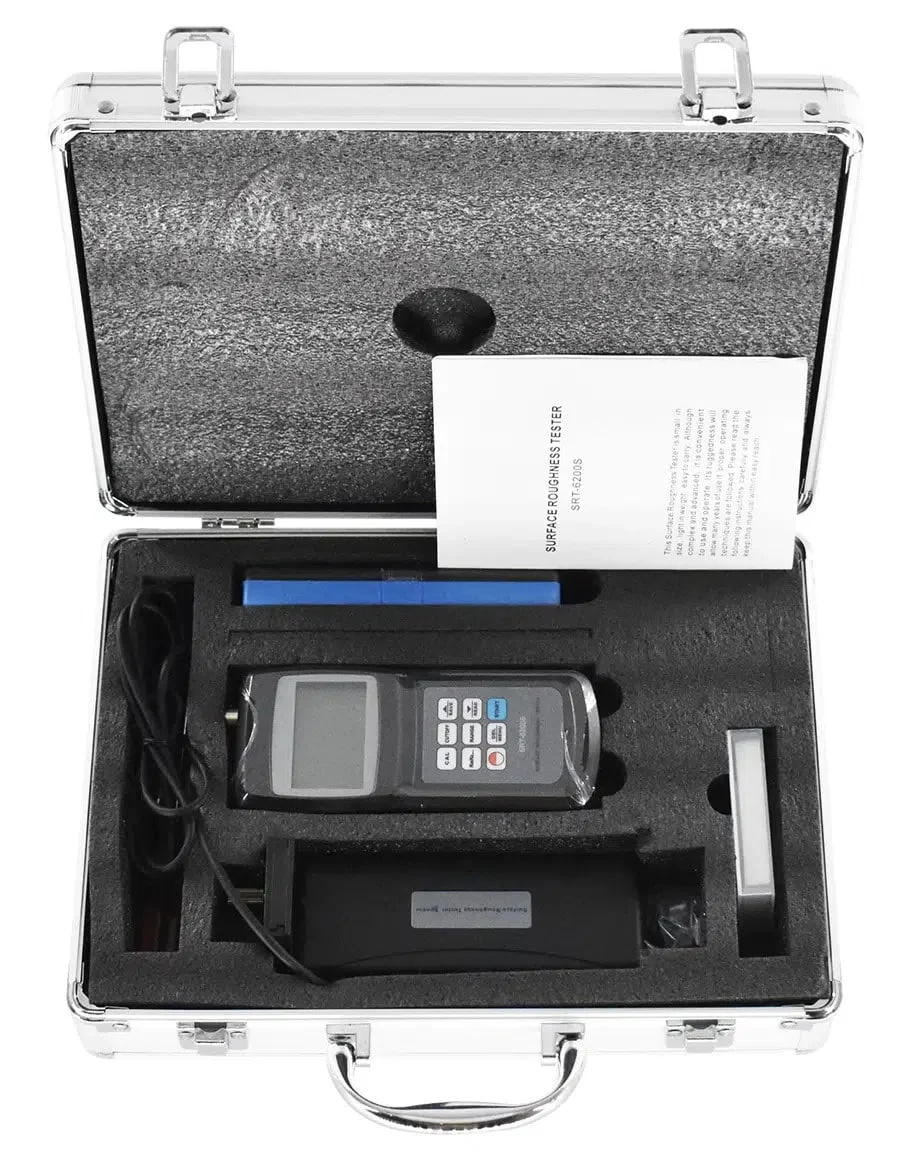

| Standard Accessories | Main Unit | |
| Standard Sample Plate SSP-100 | ||
| Standard Sensor SSP-100 | ||
| Small Screwdriver | ||
| Measuring Base | ||
| Carrying Case ( B09 ) | ||
| Operation Manual | ||
| Optinal Accessories | RS-232C Cable with Software | |
| Bluetooth Adapter with Software | ||
| Extension Rod SER-150 | ||
| Groove Stylus SRP-110 | ||
| Curvature Probe SRP-120 | ||
| Measurement Stand SRS-1 | ||
Belanja Surface Roughness Tester hanya di Alatukur.net dengan kualitas terbaik, harga bersaing, Gratis pengiriman wilayah Jakarta dan sekitarnya. Beli sekarang hanya di toko online terpercaya.
Jual Landtek SRT-6200S Surface Roughness Tester dengan harga murah dan garansi resmi dari distributor. Dapatkan produk terbaik dengan spesifikasi lengkap. Produk berkualitas tinggi dengan sertifikat kalibrasi (Certificate of Calibration) dari pabrik dan original/asli. Barang yang kami jual sudah melalui Quality Control (QC) dan siap dikirim.
Pengiriman ke seluruh Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, NTT, NTB, Papua dan Bali Denpasar.
