Rp50.000.000

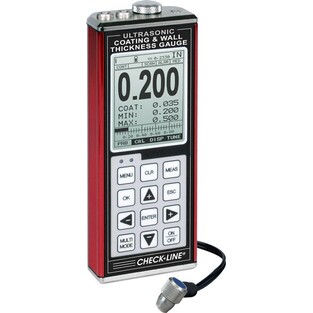

Check-Line TI-CMX mengukur ketebalan lapisan dan dinding secara akurat pada berbagai macam material. Lima mode pengukuran yang dapat dipilih memungkinkan operator untuk mengukur ketebalan dinding, ketebalan lapisan, dan menemukan korosi dan pengelupasan secara tepat—tanpa melepaskan lapisan.
Check-Line TI-CMX mengukur ketebalan lapisan dan dinding secara akurat pada berbagai macam material. Lima mode pengukuran yang dapat dipilih memungkinkan operator untuk mengukur ketebalan dinding, ketebalan lapisan, dan menemukan korosi dan pengelupasan secara tepat—tanpa melepaskan lapisan.
| Range in Steel: | Pulse-Echo Mode: Pit and Flaw detection measures from 0.025 – 9.999inches (0.63 to 254 millimeters)Echo-Echo Mode: Thru Paint & coatings measures from 0.100 – 4.000 inches (2.54 to 102 mm). Range will vary depending on the thickness |
| Range in Coating Only Mode | 0.0005″ – 0.1000″ / Resolution: 0.0001″ (0.013 – 2.540 mm / Resolution: 0.001 mm) |
| Max Coating | 0.100″ (2.54mm) |
| Resolution: | .001 inches (0.01mm) |
| Velocity Range: | .0492 to .3936 in./ms 1250 to 9999 meters/sec |
| Units: | Inch or mm |
| Measurement Modes: | – Pulse-Echo (corrosion mode) – Pulse-Echo Coating (Corrosion w/o coating) – Echo-Echo (thru-paint) – Temp Comp (auto adjust for material temp) – Coating Only (Ultrasonic Coating Gauge) |
| Transducer Types: | Dual Element (1 to 10 MHz). |
| Output | RS-232 for upload/download of setups |
| Memory capacity: | TI-CMX: None TI-CMXDL: over 200,000 measurements |
| Power Source: | Three 1.5V alkaline or 1.2V NiCad AA cells |
| Battery Life: | Typically operates for 150 hours on alkaline and 100 hours on NiCad |
| Auto Power off: | After 5 minutes of non-use |
| Display: | 1/8 in. VGA grayscale display 62 x 45.7mm |
| Keyboard: | Membrane switch with twelve tactile keys |
| Case: | Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed). |
| Temp. Limits | Ambient: -20 to 120° F (-30 to 50° C) Material: -0 to 200° F (-20 to 100° C) Special high temperature model TI-CMX-H is available for 300°F/150°C and optional probes are offered for higher surface temperatures |
| Weight, net: | 383 grams |
| Dimensions: | 63.5 W x 165 H x 31.5 D mm |
| Certification: | CE Approved, Factory calibration traceable to national standards |
Belanja Coating Thickness Gauge hanya di Alatukur.net dengan kualitas terbaik, harga bersaing, Gratis pengiriman wilayah Jakarta dan sekitarnya. Beli sekarang hanya di toko online terpercaya.
Jual Checkline TI-CMX dengan harga murah dan garansi resmi dari distributor. Dapatkan produk terbaik dengan spesifikasi lengkap. Produk berkualitas tinggi dengan sertifikat kalibrasi (Certificate of Calibration) dari pabrik dan original/asli. Barang yang kami jual sudah melalui Quality Control (QC) dan siap dikirim.
Pengiriman ke seluruh Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, NTT, NTB, Papua dan Bali Denpasar.
